BPS Valves order form
RPS Gate Valve (BPS-RG)
| 1. Series G : Angle Valve 2. Valve type R : RPS Type 3. Actuator type D : Double Acting 4. Heater H : Heating type N : Non Heating type C : Cooling Type 5. Flange F : ISO-F Flange(Bolted Joint) | 6. Port Size 50 : 50mm 80 : 80mm 7. Soft Pumping S : Soft Pumping N : None 8. Sensor 0 : None 1 : 1EA 2 : 2EA | 9. Temperature Sensor T : Installed N : None 10. Application temperature B050 : 50 C° B100 : 100 C° B140 : 140 C° ~ B200 : 200 C° Blank : None ※ Temperature range : 50~180 C° (Special type : More than 121 C°) 11. Special Type S : Special Type Valve (without standard SPEC) Blank : Standard Type |
RPS Gas Purge Angle Valve (BPS-RA-P)
| 1. Series A : Angle Valve 2. Valve type G : RPS Gas Purge Type 3. Actuator type D : Double Acting S : Sigle Acting (N.C) 4. Heater H : Heating type N : Non Heating type C : Cooling Type 5. Flange N : ISO-KF (NW Flange) | 6. Port Size 40 : 40mm 7. Soft Pumping S : Soft Pumping N : None 8. Sensor 0 : None 1 : 1EA 2 : 2EA | 9. Temperature Sensor T : Installed N : None 10. Application temperature B050 : 50 C° B100 : 100 C° B140 : 140 C° ~ B200 : 200 C° Blank : None ※ Temperature range : 50~180 C° (Special type : More than 121 C°) 11. Special Type S : Special Type Valve (without standard SPEC) Blank : Standard Type |
RPS Rotation Angle Valve (BPS-RA-R)
| 1. Series A : Angle Valve 2. Valve type R : RPS Rotation Type 3. Actuator type D : Double Acting 4. Heater H : Heating type N : Non Heating type C : Cooling Type 5. Flange N : ISO-KF (NW Flange) | 6. Port Size 25 : 25mm 40 : 40mm 7. Soft Pumping S : Soft Pumping N : None 8. Sensor 0 : None 1 : 1EA 2 : 2EA | 9. Temperature Sensor T : Installed N : None 10. Application temperature B050 : 50 C° B100 : 100 C° B140 : 140 C° ~ B200 : 200 C° Blank : None ※ Temperature range : 50~180 C° (Special type : More than 121 C°) 11. Special Type S : Special Type Valve (without standard SPEC) Blank : Standard Type |
RPS Rotation Angle Valve (BPS-RA-R)
| 1. Series G : Gate Valve 2. Valve type P : Protection Type 3. Actuator type D : Double Acting 4. Heater H : Heating type N : Non Heating type C : Cooling Type 5. Flange F : ISO-F Flange(Bolted Joint) | 6. Port Size 50 : 50mm 80 : 80mm 100 : 100mm 125 : 125mm 160 : 160mm 7. Soft Pumping S : Soft Pumping N : None 8. Sensor 0 : None 1 : 1EA 2 : 2EA | 9. Temperature Sensor T : Installed N : None 10. Application temperature B050 : 50 C° B100 : 100 C° B140 : 140 C° ~ B200 : 200 C° Blank : None ※ Temperature range : 50~180 C° (Special type : More than 121 C°) 11. Special Type S : Special Type Valve (without standard SPEC) Blank : Standard Type |

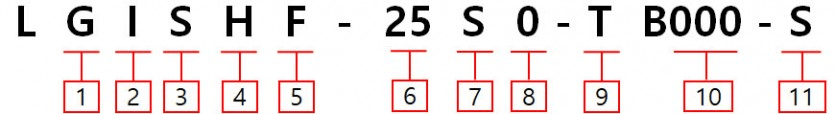

Gate Valve
| 1. Series G : Gate Valve 2. Valve type I : Inline Type 3. Actuator type D : Double Acting 4. Heater H : Heating type N : Non Heating type C : Cooling Type 5. Flange F : ISO-F Flange(Bolted Joint) | 6. Port Size 50 : 50mm 80 : 80mm 100 : 100mm 125 : 125mm 160 : 160mm 7. Soft Pumping S : Soft Pumping N : None 8. Sensor 0 : None 1 : 1EA 2 : 2EA | 9. Temperature Sensor T : Installed N : None 10. Application temperature B050 : 50 C° B100 : 100 C° B140 : 140 C° ~ B200 : 200 C° Blank : None ※ Temperature range : 50~180 C° (Special type : More than 121 C°) 11. Special Type S : Special Type Valve (without standard SPEC) Blank : Standard Type |
